2701 Specification Loadcell Model: 29/SPB2701VB

Download Spec Sheet in PDF Format ►

Specifications

Assembly Numbers
29/SPB2701VB Loadcell
Structural Configuration
Double ended, rigid-mount shear pin Compression loading
Bare Weight
10.1 kg
Static Capacity
24,000 kg
Dynamic Capacity
16,000 kg
Safe Overload
100% of Static Capacity
Ultimate Overload
Minimum of 300% of Static Capacity
Loadcell Body Material
4340 alloy steel, heat treated to 180,000psi yield strength
Connector
4 pin Military style, injection moulded
Cable
Custom 4 core with polyurethane jacket

Electrical

Excitation
15 volts (AC or DC)
5-10 volts Recommended
Output
0.5.mv/v @ 12,700 kg
Impedance
350Ω +/- 1.0Ω
Isolation
500MΩ at 50 volts

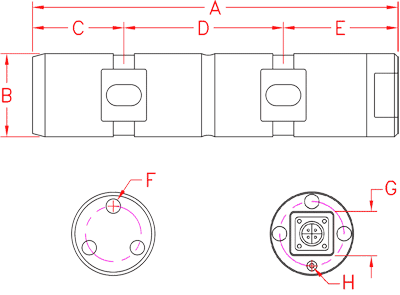

Dimensions and Mounting Instructions

IMPORTANT This Loadcell must be mounted in accordance with Elphinstone Instructions. Failure to do so may void warranty. Specifications to change without notice. These specifications supercede all previous specifications as of October 2006.

Key

  1. 329 mm
  2. 75 mm
  3. 82 mm
  4. 144 mm
  5. 103 mm
  6. ½"-13ONC x 26mm Deep
  7. 40 mm
  8. 1/8"-27WPT x 15mm Deep for grease nipple

Connections

  1. Excitation +
  2. Signal +
  3. Signal -
  4. Excitation -

Mounting Requirements

  • Top Plate must be dead stiff and machined flat after welding
  • Bottom Mounting must be dead stiff
  • Bearing plate must be welded using 10mm fillet
  • Across end and fully down each side

Precautions

  • Do not strike an Arc on the loadcell body with a welder
  • It is Ok to use the loadcell to position the Bearing plate for tack welding only
  • Remove the loadcell to complete welding procedure
  • Do not damage the bottom cover plate as this protects delicate strain gauges
  • Take care to protect the loadcell connector/cable as this can not be replaced in the field
  • Fit protection for the loadcell connector from stones and foreign objects which may damage it
  • Do not damage or paint over the Part/Serial Number identification tag

Capacity

Maximum Dynamic Load
16,000kg (35,200 lb)
Maximum Static Load
24,000kg (52,900 lb)
Coat all bolt threads with anti-seize
