2250 Specification Loadcell Model: 29/BBB2250VB

Download Spec Sheet in PDF Format ►

Specifications

Assembly Numbers

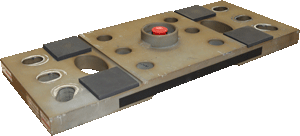

29/BBB2250VB Loadcell
Structural Configuration
Double ended, rigid-mount bending beam Compression loading
Bare Weight
21kg
Static Capacity
24,000kg
Dynamic Capacity
16,000kg
Safe Overload
150% of Static Capacity
Ultimate Overload
Minimum of 300% of Static Capacity
Loadcell Body Material
ASTM 514 Steel
Mounting Plate
21/122067 Pedestal Plate 20mm G250
Top Mounting Bolts()
7/8"-14TPI x (Length depending on mountings) Grade 8
Tie Down Bolts()
90/983016 1"-14TPI x 3" Grade 8
Connector
4 pin Military style, injection moulded
Cable
Custom 4 core with polyurethane jacket

Electrical

Excitation
15 volts (AC or DC)
5-10 volts Recommended
Output
0.5.mv/v @ 12,600 kg
Impedance
350Ω +/- 1.0Ω
Isolation
500MΩ at 50 volts

Dimensions and Mounting Instructions

IMPORTANT This Loadcell must be mounted in accordance with Elphinstone Instructions. Failure to do so may void warranty. Specifications to change without notice. These specifications supercede all previous specifications as of October 2006.

Key

  1. 495 mm
  2. 210 mm
  3. 400 mm
  4. 146 mm
  5. 67 mm
  6. 53 mm
  7. 47 mm
  8. 174 mm
  9. 127 mm
  10. 63 mm
  11. 184 mm
  12. 28 mm
  13. 210 mm
  14. 63 mm
  15. 143 mm
  16. 23 mm
  17. 27 mm

Connections

  1. Excitation +
  2. Signal +
  3. Signal -
  4. Excitation -

Mounting Requirements

  • Top Plate must be dead stiff and machined flat after welding
  • Bottom Mounting must be dead stiff
  • Bearing plate must be welded using 10mm fillet
  • Across end and fully down each side

Precautions

  • Do not strike an Arc on the loadcell body with a welder
  • It is Ok to use the loadcell to position the Bearing plate for tack welding only
  • Remove the loadcell to complete welding procedure
  • Do not damage the bottom cover plate as this protects delicate strain gauges
  • Take care to protect the loadcell connector/cable as this can not be replaced in the field
  • Fit protection for the loadcell connector from stones and foreign objects which may damage it
  • Do not damage or paint over the Part/Serial Number identification tag

Capacity

Maximum Dynamic Load
16,000kg (35,200 lb)
Maximum Static Load
24,000 kg (53,900 lb)

Bolt Tensions

7/8" Top mounting bolts
600Nm (600ft/lb)
1" End mounting bolts
945Nm (700ft/lb)
Coat all bolt threads with anti-seize
