Easyloader™

Proven design over millions of kilometres, Easyloader™ has been designed to be simple to operate, maintain and service, and has a proven high resale value. With bolt-on options, Easyloader™ can be adapted and changed to suit most applications of log transport.

Features

  • Simple and fast load/unload (90 seconds)
  • Light tare weight — from 7,900kg
  • Easyweigh™ on-board weighing system as standard
  • Frames are fully bolted together
  • 19 metre Mini B-Double to 33.5m Multi Bay B-Triple
  • Long Load Mover — 19m single load length
  • Multiple log length options
  • Proven design over millions of kilometres
  • Standard options suit all models
  • Trailers are interchangeable
  • Can be towed by standard Highway Prime Mover
  • LED lighting as standard

Easyloader™ is unique in that it covers all applications from General Access to B-Triple routes — 32 tonne to 68 tonne payloads.


Configurations

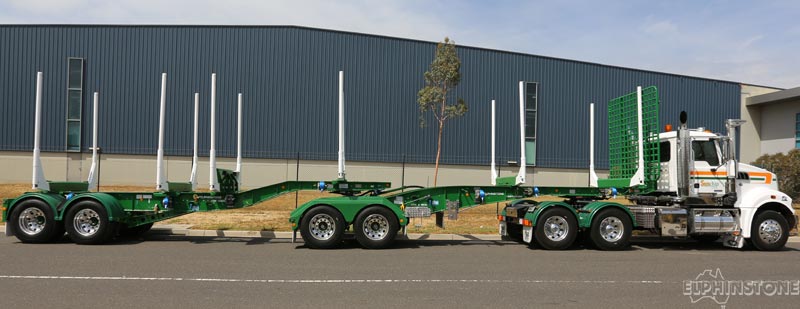

  • Tandem—Tandem (19m)
    General Access Unit
  • Tandem—Tandem (19m)
    General Access Unit

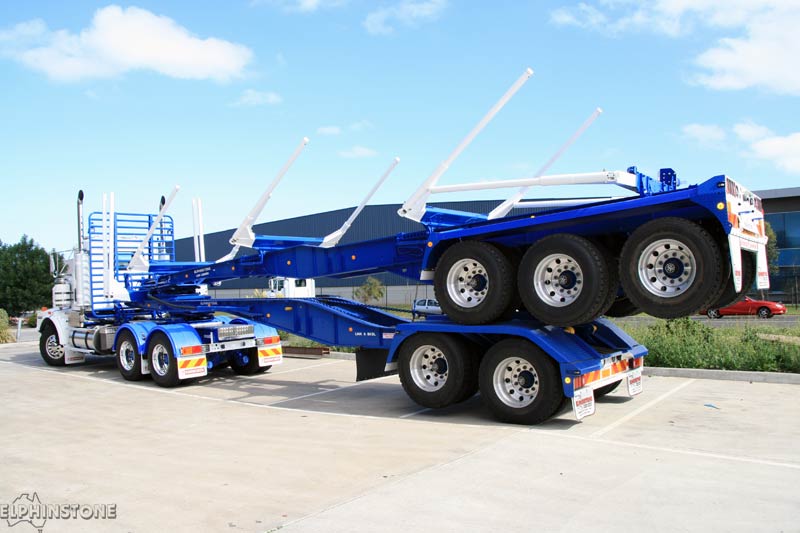

  • Tandem—TriAxle (21/22/23/25/26m)
    B-Double Routes
  • Tandem—TriAxle (21/22/23/25/26m)
    B-Double Routes

  • TriAxle—TriAxle (26m)
    All B-Double Routes
  • TriAxle—TriAxle (26m)
    All B-Double Routes

  • TriAxle—TriAxle—TriAxle (27.5/30/33.5m Multi Bay)
    B-Triple
  • TriAxle—TriAxle—TriAxle (27.5/30/33.5m Multi Bay)
    B-Triple

  • TriAxle—Tandem—TriAxle
    A-Double (30m)
  • TriAxle—Tandem—TriAxle
    A-Double (30m)

  • TriAxle—TriAxle (26m)
    Long Load Mover
    19m Single Length Loads on Std B-Double Routes
  • TriAxle—TriAxle (26m)
    Long Load Mover
    19m Single Length Loads on Std B-Double Routes

Components are the same in most models. Only the trailer frames change in length. This means spare parts are the same for all models.

With bolt-on options, Easyloader™ can be adapted and changed to suit most applications of log transport

All of the above configurations are also available in a standard flat-tow option.

Options Available

  • R22.5" or 19.5" Wheels
  • Cab Guard — Trailer Mounted
  • Rear Guard — bolt on, rubber mounted
  • Manual Winch / Load Binder
  • Auto Tensioner (Air) / Load Binder
  • Axle lift — Extra weight on drive for improved traction
  • Traction Improver
  • Slider/turntable
  • Wind down landing legs
  • Rear push bar
  • Additional bolsters
  • Sliding bolsters — Manual & Hydraulic
  • Hydraulic siding bolster control
  • Spare Wheel Carrier
  • Dolly bolsters, fold up. Aluminium or Steel
  • Suspension raise/lower valves
  • Chain/Tool Box — Intergrated Axe and Twitch holders

With simple loading and unloading, the Easyloader™ is being loaded with logs whilst conventional trailers are still being set up at the landing.

Easyloader™ is a very low cost 'whole of life' unit.
